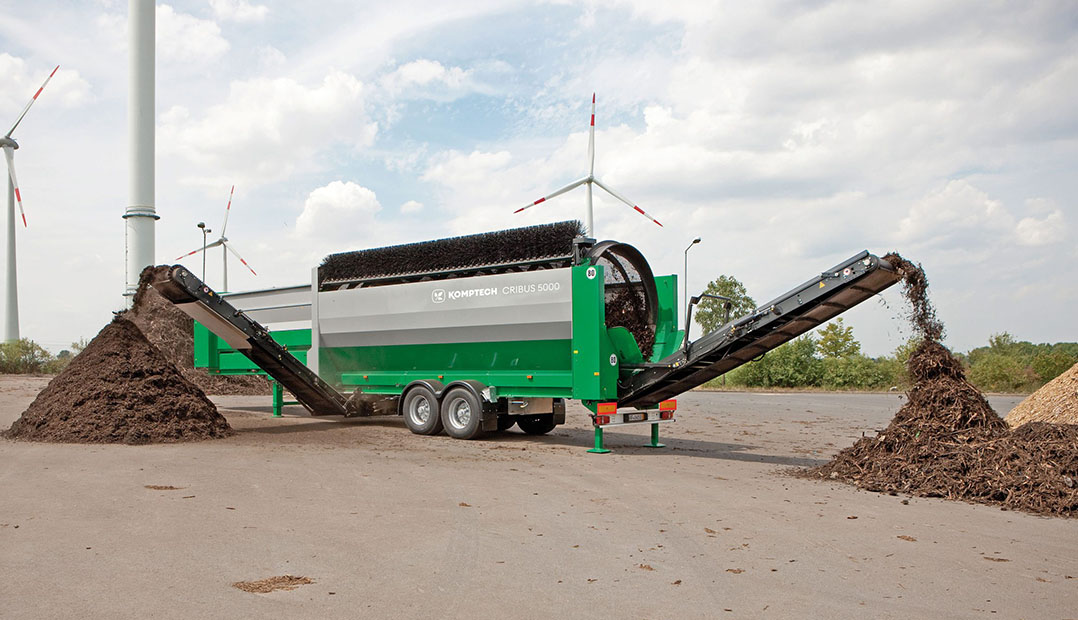

Komptech Cribus 5000
Electric-Drive, Mobile Trommel Screen
A large trommel screen built for high-performance, even with small screen holes

An electric trommel designed for high throughput and quality screening, especially with small screen hole sizes. One of the market’s largest semi-trailer trommels, the Cribus 5000 has a 25'3" screen with over 538 cubic feet of screening surface, delivering easy feeding, operation, and mobility for multi-site use.

DOWNLOAD PRODUCT SHEET Speak to a Viably Screening Expert
  • Mobile

Throughput

Up to ~353 yd3 per hour

Waste Streams

Organics and Food Waste

Power Source

Diesel
Electric
DOWNLOAD PRODUCT SHEET Speak to a Viably Screening Expert

What Goes In:

Put the Cribus 5000 trommel screen to work on compost, mulch, soils, C&D fines, MSW, and food waste

What It Does:

Keep material loaders busy with a large, load-dependent infeed hopper, and plenty of effective screening area

What Comes Out:

Smooth and steady screened separation and output of large waste fractions

    Drag to Explore

    Core Features

    01

    Fully electronic, configurable graphic operating panel, automated starting and electric brush adjustment, plus optional hopper sensor control, and pre-screen.

    02

    Steep hopper sides prevent bridging and a wide, cleated conveyor enables reliable feeding. Large feed cross section prevents material compression between hopper and drum.

    03

    7.8 yd.3 hopper and 5.1 yd. loading length for easy feeding with large loaders. Drum overloading is prevented by load-dependent hopper control.

    04

    With small screen hole sizes (< 3/4 in), the 25'3" length drum screens thoroughly. The controllable hopper and drum rotation speeds allow precise alignment.

    See The Komptech Cribus 5000 In Action

    / About the Manufacturer

    Komptech is the world’s leading technology developer and equipment supplier for recycling solid and organic waste. Their equipment solutions operate for over 4,000 customers in over 80 countries and regions worldwide.

    / model comparisons

    Which one is right for you?

    Model
    Power Source
    Waste Streams
    Max Throughput

    • Cribus 5000

      Electrical Power / 36 kW (49 HP)

      Perkins Tier 4 Final / 74 HP (Optional)

      Organics and Food Waste

      Up to ~353 yd3 per hour

      View Product

    • Cribus 3800

      Electrical Power / 30 kW (41 HP)

      Perkins Tier 4 Final / 74 HP (Optional)

      Organics and Food Waste

      Up to ~287 yd3 per hour

      View Product

    • Cribus 2800

      Electrical Power / 25 kW (34 HP)

      Perkins Tier 4 Final / 74 HP (Optional)

      Organics and Food Waste

      Up to ~222 yd3 per hour

      View Product

    • Nemus 2700

      Perkins Tier 4 Final / 99 HP

      Organics and Food Waste

      Up to ~230 yd³ per hour

      View Product

    • Primus

      Perkins Tier 4 Final / 70 HP

      Organics and Food Waste

      Up To ~90 yd³ Per Hour

      View Product
